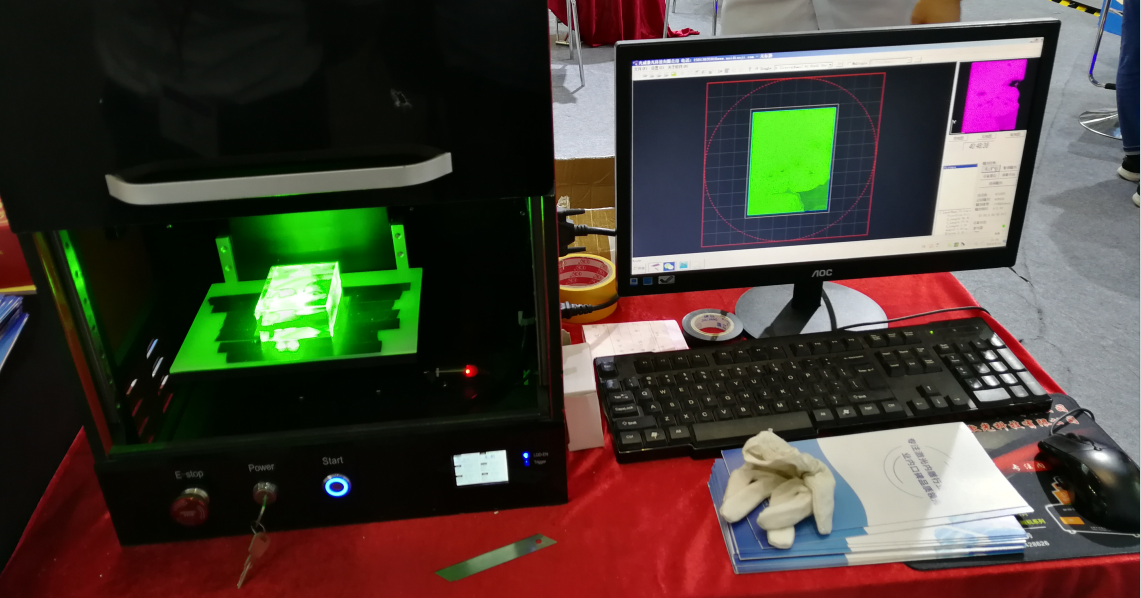

IM3D304015 3D laser engraving machine is the most cost-effective model,

mainly used in wedding photo studios, advertising gifts, tourist

attractions and internal carving processing, so the market is also known

as wedding photo studio dedicated laser engraving machine, advertising

gift engraving Machine, three-dimensional portrait engraving machine,

multi-function engraving machine, etc. It is the third generation of the

company’s equipment, with better performance, better quality and longer life!

IM3D304015 features:

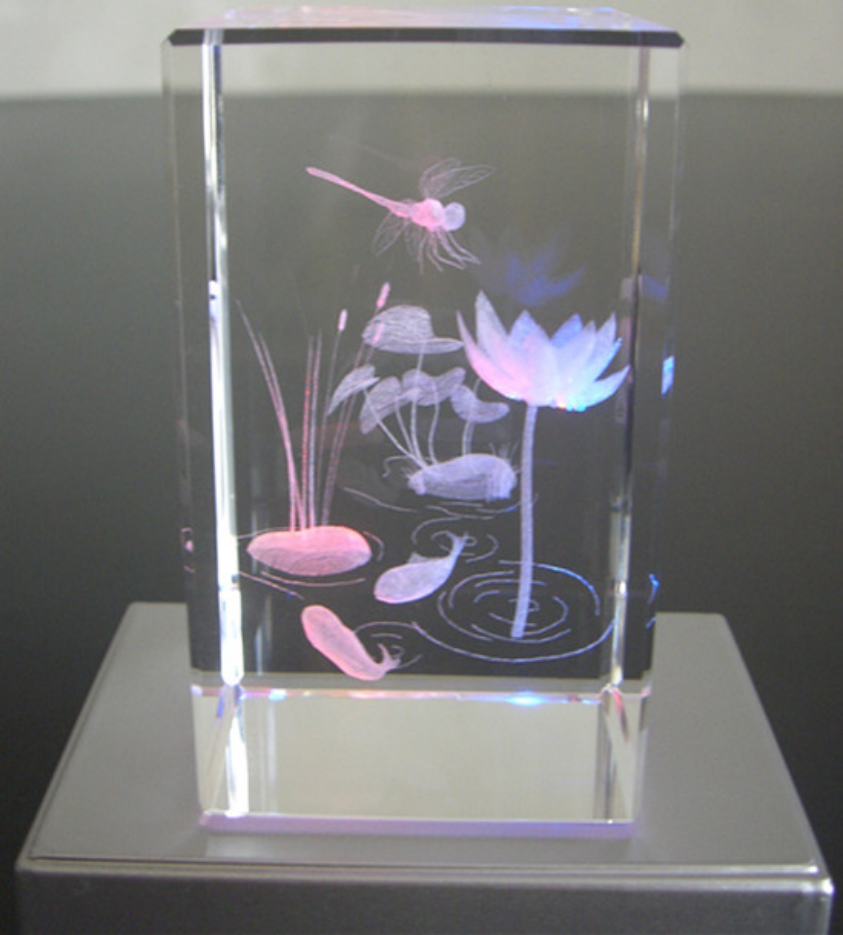

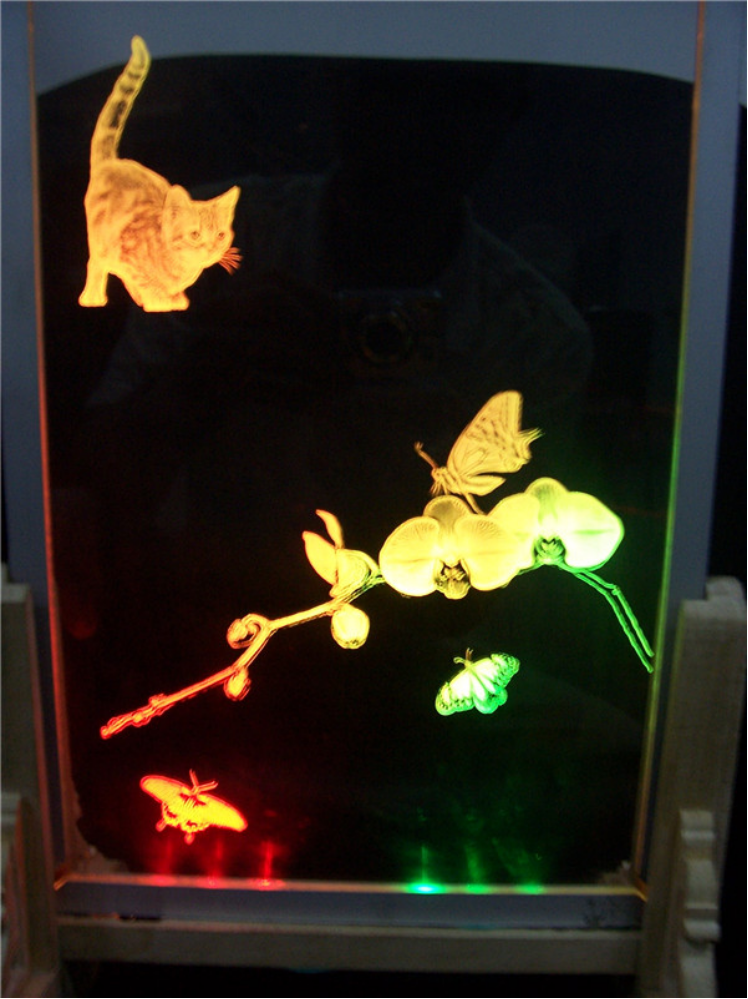

1, do not pick the material, a multi-purpose machine. It can engrave

any text and pattern in the interior of transparent materials such as acrylic,

crystal, glass, zircon, etc. Through the technical improvement of our company,

the equipment can also carry out basic radium on opaque materials such as

metal and non-metal surfaces. Carving and processing, etc., to achieve the

purpose of multi-purpose.

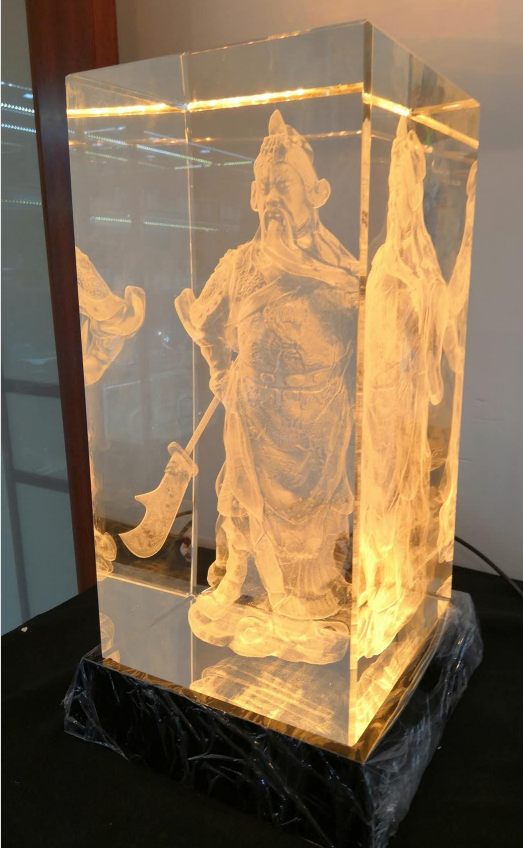

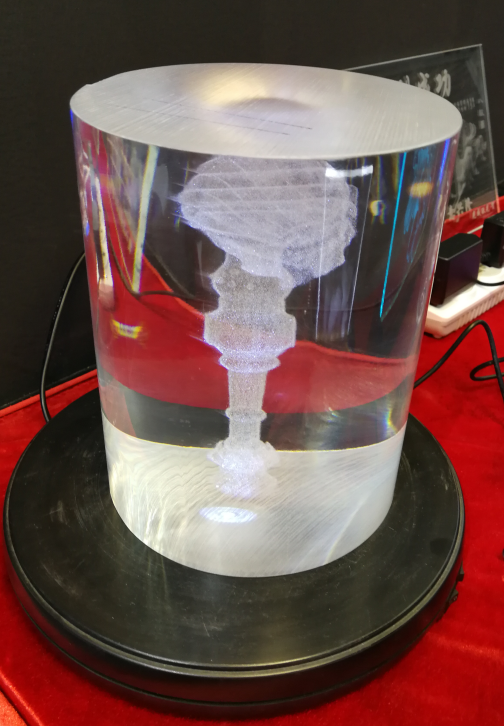

2. It has 2D and 3D functions at the same time. Can make flat photos,
3. children’s hands and feetprint, trophy medals, 3D portraits and various 3D models.
4. Z-axis and XY-axis are integrated. Make the engraving more accurate and better.

4, the operation is simple, flexible and convenient. The fool-developed software

developed by myself can be used by a newcomer who can operate the computer for

an hour. It can be mass-produced or personalized. When mass production, one

person can operate several devices, saving manpower.

5, the carving speed is fast, fine and even. The 368-size crystal portrait can be

completed quickly and with high quality in two or three minutes.

6, no dust and any pollution. Because the laser is carved in crystal, glass, acrylic

and light-transmissive plastic film, there is no damage on the surface, so there is no pollution.

7, wear-resistant, can not be altered. The engraving pattern of the device is inside

the material, and there is no gap or damage on the surface of the material, so it cannot

be removed with acid and alkali, solvent, high temperature, friction, etc., completely

eliminating the alteration.

8. Energy-saving The power of the whole machine is about one hour per hour,
9. and the power of 220 volts is 50 Hz.

Application areas:

1. Electrical and mobile phone industry electrical panel, mobile phone buttons, chassis,
2. lenses, membrane buttons, external and internal marking of IMD/IML products;

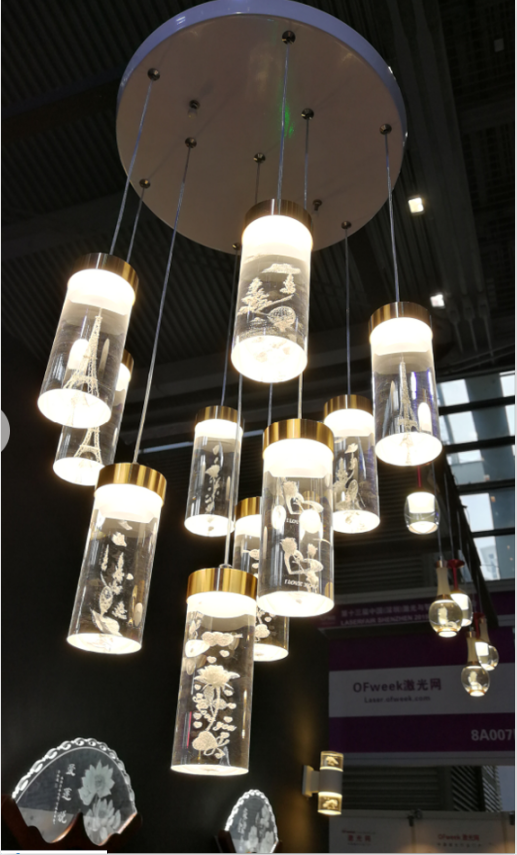

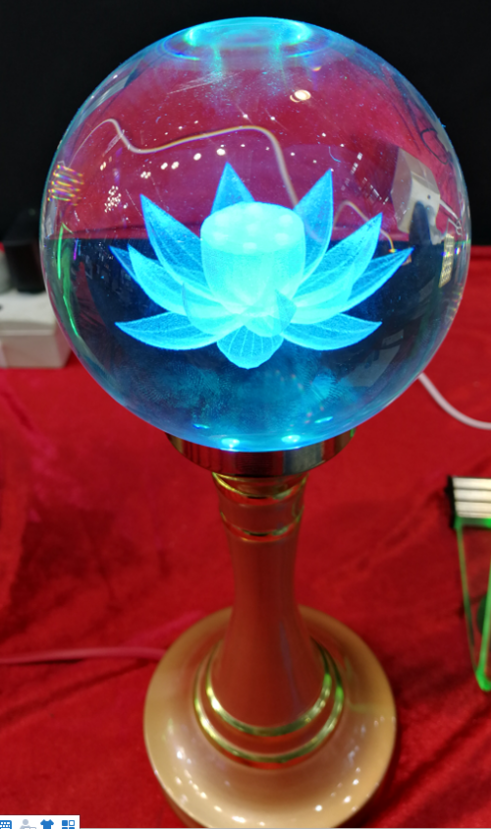

3. The interior of the lighting industry, the jewelry industry and other transparent
4. materials engraved LOGO, name, text, logo and pattern.
5. Anti-counterfeiting and anti-counterfeiting products of wineries, cosmetics factories,
6. glass factories, etc., such as anti-counterfeiting code, area code, QR code, production
7. date, logistics code, etc.
8. Wedding photo studio, tourist attraction portrait production and gift industry, trophy
9. medal production, etc.

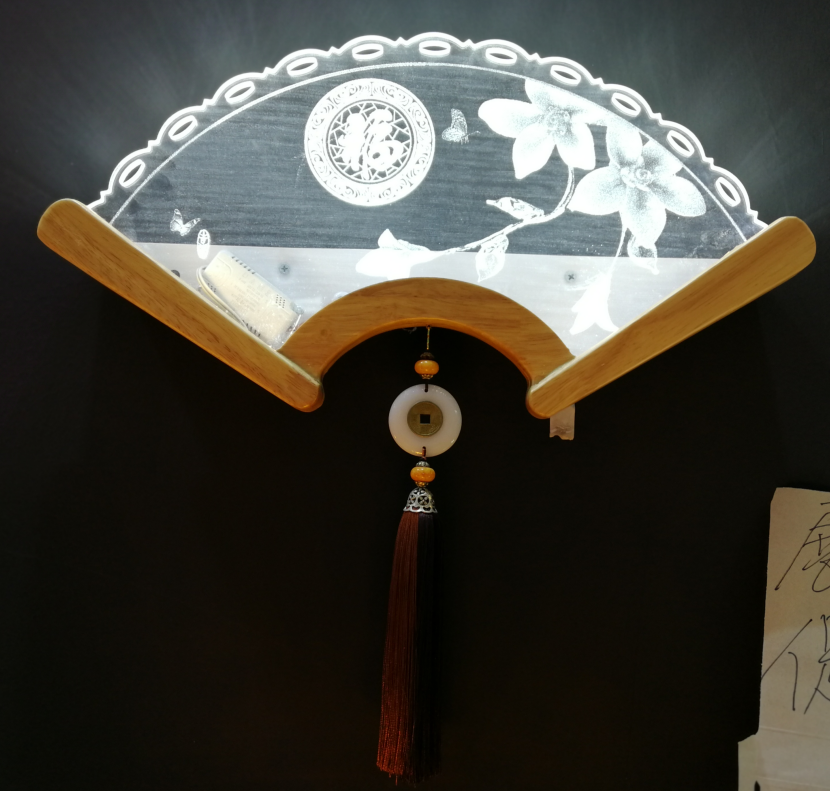

10. Other industries: such as porcelain industry logo; automotive industry lights; eye
11. industry glasses, glasses legs; watch industry dial; advertising industry ultra-thin
12. light box and engraving any characters and text inside the light-transmitting material.

Device parameters:

Parameter name                     parameter value

Laser pumping method                diode semiconductor

Average output power                 1.5W

Laser wavelength                     532nm

Maximum single pulse energy           1.2mj

Speed  of light quality                 M2<1.5

Laser frequency          3000HZ (standard) 4000HZ 6000HZ optional

Mode                               Q-switching

Pulse width                          7ns

Maximum engraving range            300mm*400mm*150mm

Theoretical maximum engraving speed  3000 points / sec (standard)

4000 points / sec 5800 points / sec optional

Laser head:                      single head

Electricity demand                220V±10%/50Hz

Laser cooling method               air cooling

Resolution:                       500-1200DPI

Focal length            100mm (standard) 120mm 165mm optional

Focus diameter                    0.02mm

Laser module life                  20000 hours

Applicable materials  Acrylic, crystal, glass, PC/PET sheet, zircon and

other light-transmissive materials, metal, non-metal, etc.

Use environment    Clean and dust-free, no source, it is recommended

to work in air-conditioned environment

Appearance size              790*940*1000MM

Movement form

The weight of the whole machine is      about 140KG

Remarks: The above are standard and standard parameters, special

requirements, can be customized, including laser parameter performance
