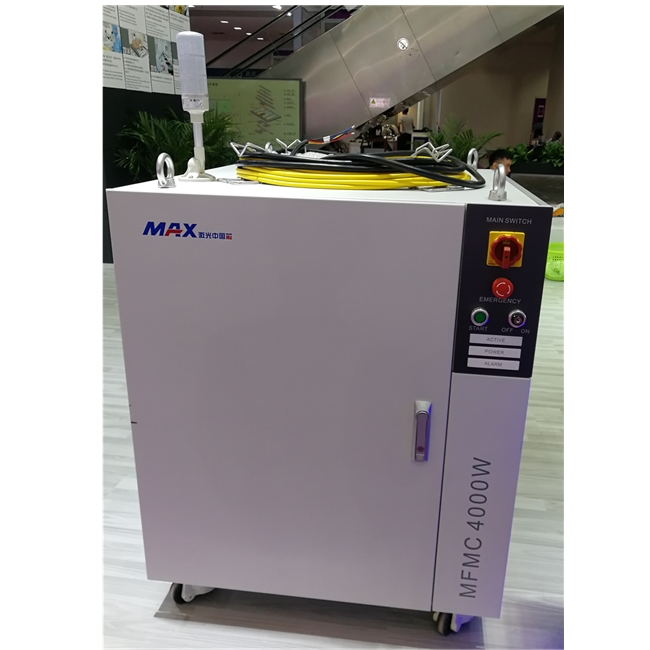

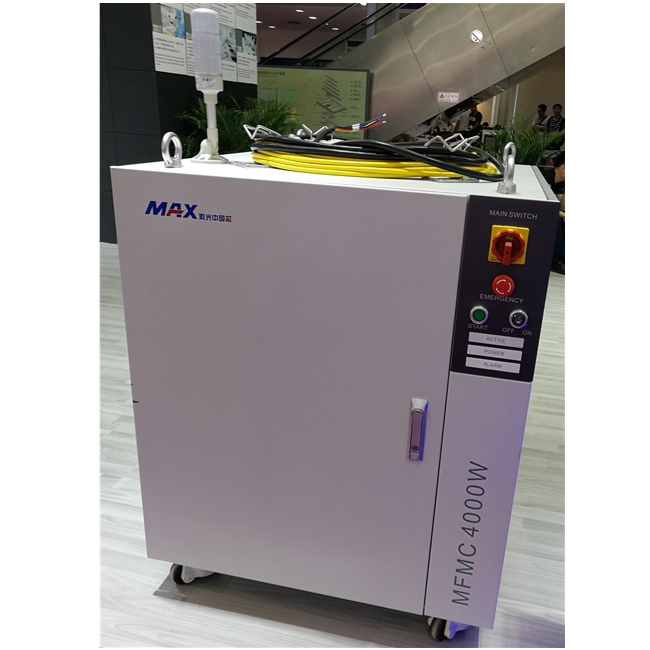

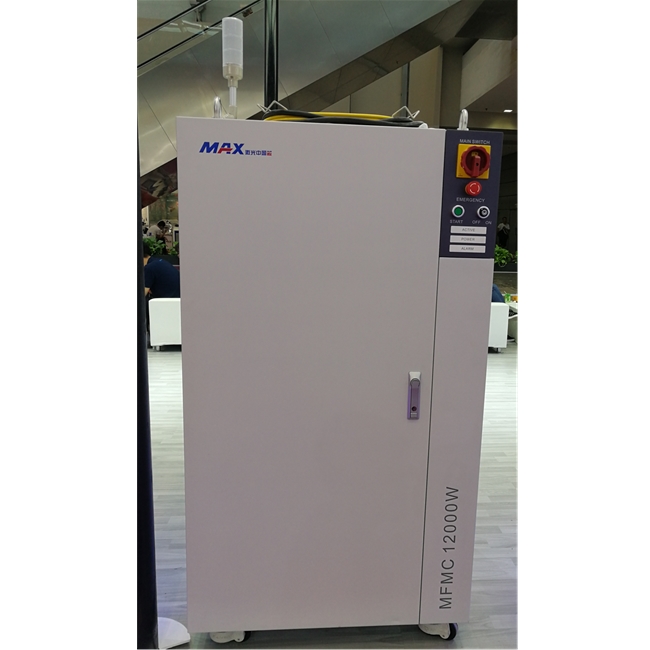

MFMC Series Multi-mode CW Fiber Laser
Product Introduction
MFMC series Multi-mode CW fiber laser, based on modular design,
has high laser stability.This series products include laser power from
1500W to 6000W, and are ideal for thick metal plate laser cutting,
welding, etc. The laser can be adjusted continuously, and the beam
is transmitted by fiber and QBH connector.It can be equipped with
process head or scanner ,and is very suitable for system integration
with robot or machine tool, and is widely used for welding and cutting
in industries like metal working, medical, new energy, automobile,
aerospace, construction machinery,etc.
Product Features
Modular design, compact
Free of maintenance
Power efficiency over 30%
Laser power adjustable continuously Immediate laser response
Excellent laser stability
Smart monitoring Suitable for integration
Product Applications
Laser cutting, laser welding, laser cladding, surface treatment, etc.
| Parameter | Unit | Data | Data | Data | Data | Data |
| Type | MFMC-1500 | MFMC-2000 | MFMC-2500 | MFMC-4000 | MFMC-6000 | |
| Operation mode | CW | CW | CW | CW | CW | |
| Polarization | Random | Random | Random | Random | Random | |
| Central wavelength | nm | 1080±10 | 1080±10 | 1080±10 | 1080±10 | 1080±10 |
| Output power | w | 1500 | 2000 | 2500 | 4000 | 6000 |
| Laser power stability | % | <3 | <3 | <3 | <3 | <3 |
| Power tunable range | % | 10~100 | 10~100 | 10~100 | 10~100 | 10~100 |
| Operation voltage | VAC | 380 | 380 | 380 | 380 | 380 |
| Power consumption | KW | <6.0 | <8.0 | <10.0 | <16.0 | <24.0 |
| Fiber length | m | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 |
| Cooling | Water cooling | Water cooling | Water cooling | Water cooling | Water cooling |
