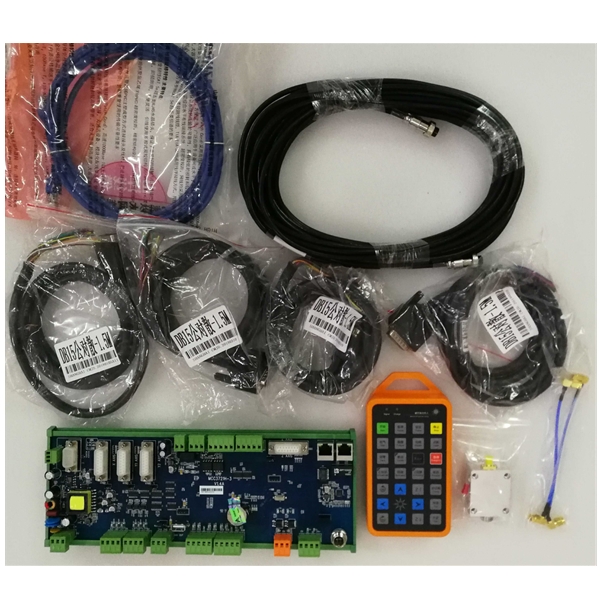

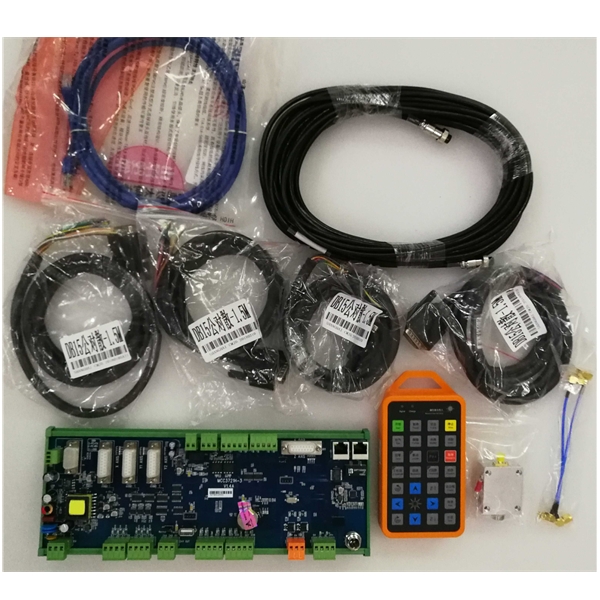

MCC3721H integrated cutting CNC system

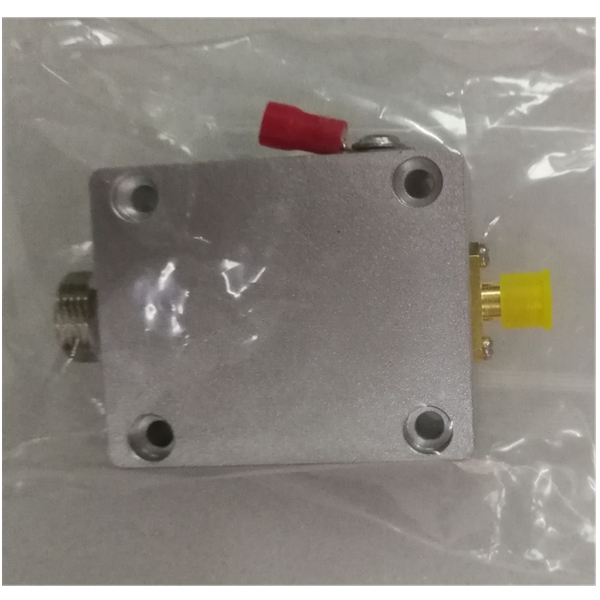

The MCC3721H motion control card and the accompanying SC1000 cutting software are CNC machine systems developed specifically for platform-based fiber-optic cutting applications. The control card not only implements the X-Y axis graphical interpolation, but also integrates the Z-axis capacitance adjustment control function, which is an ideal system solution for fiber cutting machines.

[perfect hardware]

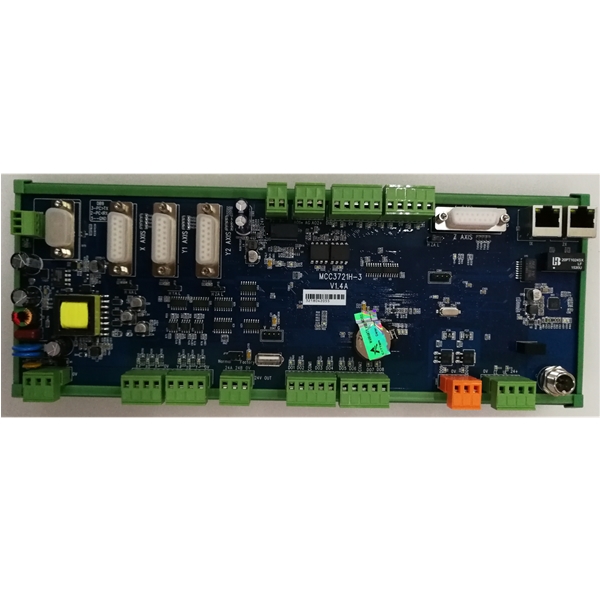

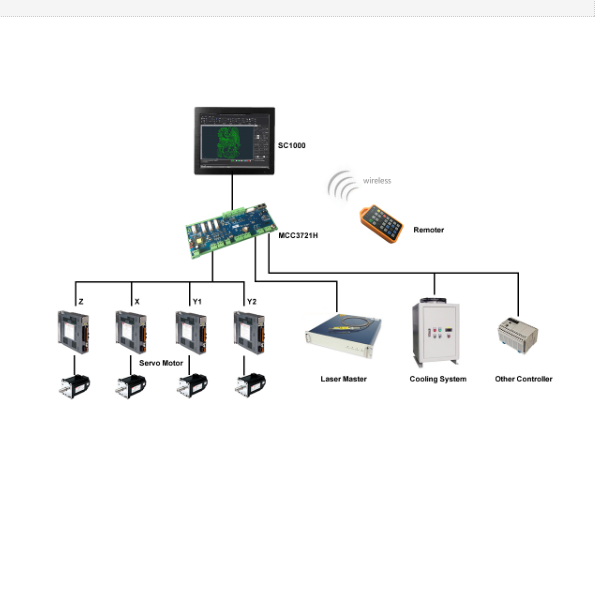

Industrial Ethernet architecture, easy to install, easy to maintain, easy to expand

• Rich and flexible interface with both pertinence and freedom

• Built-in encryption chip, perfect and reliable encryption function

[Powerful CAM]

• Based on AUTOCAD kernel development, CAM is powerful

• Integrated cutting process highlights high-quality cutting

• Beautiful and easy to use based on RIBBON’s interface style

[excellent algorithm]

• Higher-order curve fitting based on non-uniform rational B-spline

• Global machining speed planning based on S-type acceleration/deceleration curves

The main parameters:

Motion control

Minimum interpolation cycle 0.25ms, maximum speed 100m/min

Global S-type acceleration and deceleration planning, maximum acceleration 1.2G

NURBS curve interpolation, corner intelligent smoothing.

Support dual-drive control, maximum support 4-axis linkage, high-speed pulse

output, maximum frequency 1MHz, dual-drive error real-time monitoring.

Laser control

Support network port / serial port / DA multiple control modes, PWM output frequency 1Hz ~ 50KHz. The

Communication ：Ethernet Industrial Bus, Plug and Play

I/O resources ：8 general inputs, 8 general outputs, 2 thyristor outputs. 2-way DA output.

Protection： Industrial-grade EMC protection designed to meet CE certification

Operating voltage ：24VDC ± 10%

Operating current ：<0.5 A

Dimensions： Long (315mm) X Wide (120mm), 35mm Rail Mount

Working environment Temperature: -10~55 degrees Celsius Humidity: 5%~90% without condensation
