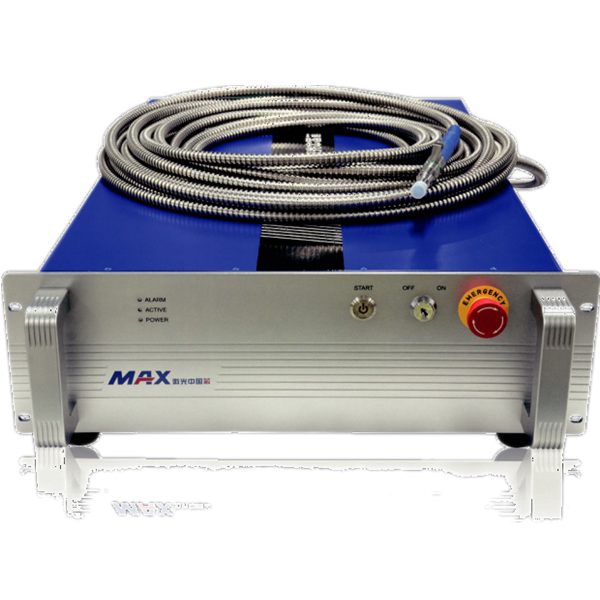

MFSC-1500W Single-mode CW Fiber Laser source max

Product Introduction

MFSC-1500W single-mode CW fiber laser, based on modular design

design has excellent beam quality and high laser stability. The laser can

be adjusted continuously, and the beam is transmitted by fiber and QBH

connector.It can be equipped with process head or scanner, and is very

suitable for system integration with robot or machine tool, and is widely

used for welding and cutting in industries like 3C, metal working, medical,

new energy,automobile, aerospace, etc.



Produce Features

Free of maintenance

Excellent laser stability

Modular design, compact Power efficiency over 30%

Laser power adjustable continuously Immediate laser response

Excellent beam quality

Smart monitoring Suitable for integration



Product Applicatipons

Laser cutting, laser welding, brazing, surface treatment, etc.

Parameter Unit Data
Type MFSC-1500
Operation mode CW
Central wavelength nm 1080±10
Polarization Random
Output power W 1500
Laser power stability % ≤3
Power tunable range % 10~100
Operation voltage VAC 300
Power consumption W <6.0
Fiber length m 10-15
Weight kg 260
Cooling Water cooling
