precitec fiber laser cutting head light cutter 3kw 4kw

LIGHTCUTTER – cutting system designed for flat and grooved

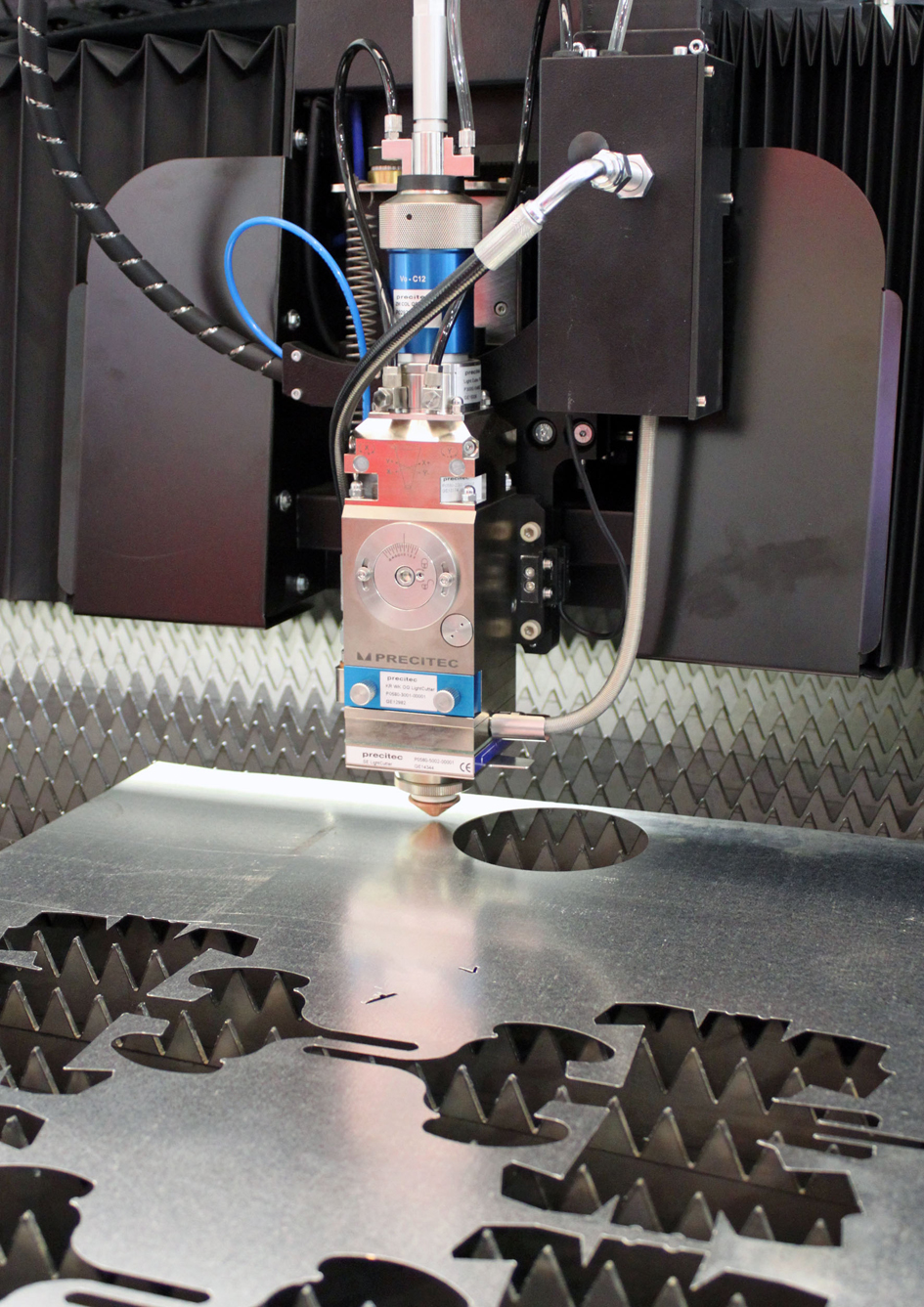

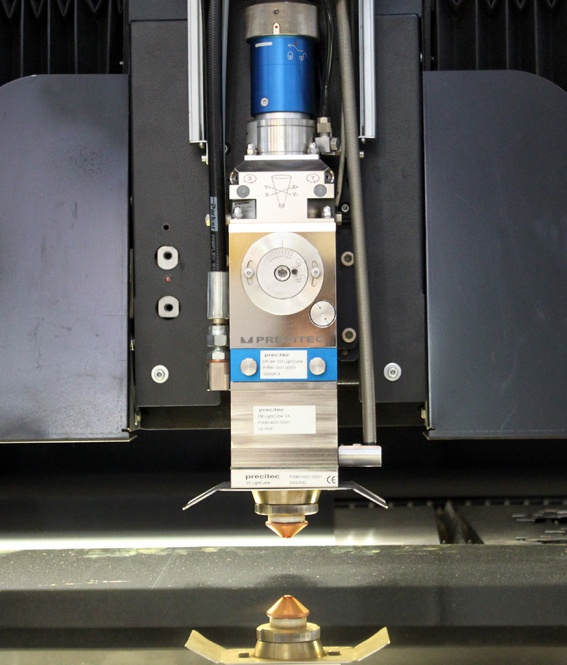

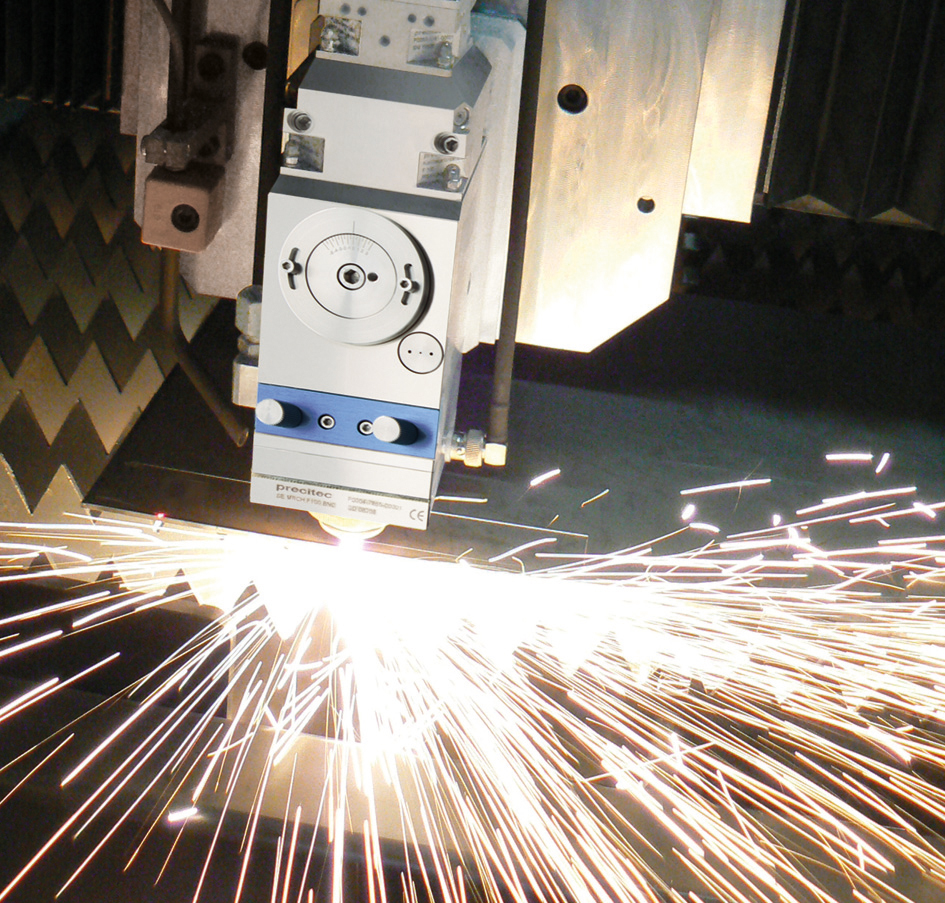

LightCutter is a cost-effective cutting head with a maximum power

of 4kW. It enables oxygen cutting of 20mm stainless steel or

aluminum and 25mm carbon steel for superior cutting results.



Depending on the cutting application, LightCutter has different

configurations to choose from. LightCutter is suitable for flat

and tube and bevel cutting; LightCutter 3D can perform complex

cutting of pipes, profiles and profiles up to a 45° bevel profile.

Both models can be configured to automatically adjust the focus

position (auto focus).



The dust-proof LightCutter has two protective mirrors to

protect the optical lens from contamination, spatter, dust, metal

powder and dirty gases. This protection ensures reliable and

long-lasting work on the cutting head. At the same time, the

sealed protective mirror drawer can be easily and quickly

replaced with protective lenses to increase production efficiency.

Advantage

Technical data

Pictures and videos

Cost effective

Fast cutting speed and good cutting quality

Automatic or manual focus adjustment

Vertical or bent

Multiple fiber interfaces (QBH, D)

Vertical/horizontal focus simple setup



LightCutter / LightCutter 3D

Maximum power 3kW

Collimation focal length (FC): 75mm, 100mm (LightCutter 3D: 100 mm)

Focusing focal length (FF): 100 mm, 125 mm, 150 mm, 200 mm (LightCutter 3D: 150 mm)

NAmax: 0.16 for FC75 and 0.12 for FC100 (LightCutter 3D: 0.12 for FC100)

Vertical adjustment range: -5 mm / +3 mm



LightCutter Auto Focus / LightCutter Auto Focus 3D

Maximum laser power: 4kW

Collimation focal length (FC): 100mm

Focusing focal length (FF): 125 mm, 150 mm, 200 mm (LightCutter autofocus 3D: 150 mm)

NAmax: FC100 0.12

Vertical adjustment range: -9 mm / +4 mm
