precitec procutter fiber laser cutting head have 6kw  8kw  15kw  three models

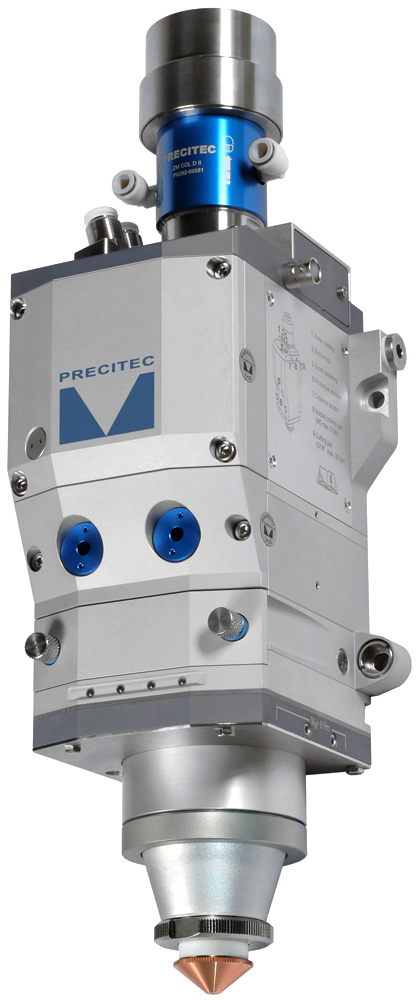

ProCutter 2.0 – a new generation of laser cutting heads

The new ProCutter 2.0 Series delivers superior performance

and automated performance. ProCutter 2.0 with a maximum

power of 15kW+ will usher in a new era of laser cutting – faster,

simpler, more efficient and more durable. The newly designed

cutting head gas path enables high quality and faster cutting.



More importantly, it also provides a wider parameter window,

making it easier to get the best cutting parameters. On the

other hand, ProCutter 2.0 is ready for Industry 4.0. It can be

docked to automatically change nozzle equipment, making

production more automated and more efficient. Built-in updated

sensors detect lens contamination and condensation in the

cutting head and send an alarm signal. All test data can be read

on the mobile terminal through the wireless network, which is

convenient for the user to monitor the running state of the

cutting head.



The ProCutter APP allows the status of the laser cutting

head and the error query to be visualized.

Advantage

Autofocus makes the cutting system more automated

Lightweight design and fast acceleration

Driftless distance sensor

Continuous protective lens monitoring

Closed light path protection

PierceTec is automatically perforated

CoolTec cooling technology for rapid cooling of sheet

metal surface temperatures

LED operation indicator shows the status of the cutting head

Monitoring data can be read on a mobile terminal or CNC

via a wireless network

Pressure sensor in the cutting head and at the nozzle



Technical data

8kW ProCutter (wavelength 1030 -1090nm)

Collimation lens focus: 100 mm

Focusing mirror FF: 125, 150, 175, 200 mm

NAmax: 0.13

Dimensions (width x depth): 96 x 134 mm

Weight: 4.2 kg (FF125)



15kW ProCutter (wavelength 1030 -1090nm)

Collimation lens focus: 100 mm

Focusing mirror FF: 150, 200 mm

NAmax: 0.13

Dimensions (width x depth): 96 x 134 mm

Weight: 4.9 kg (FF150)
