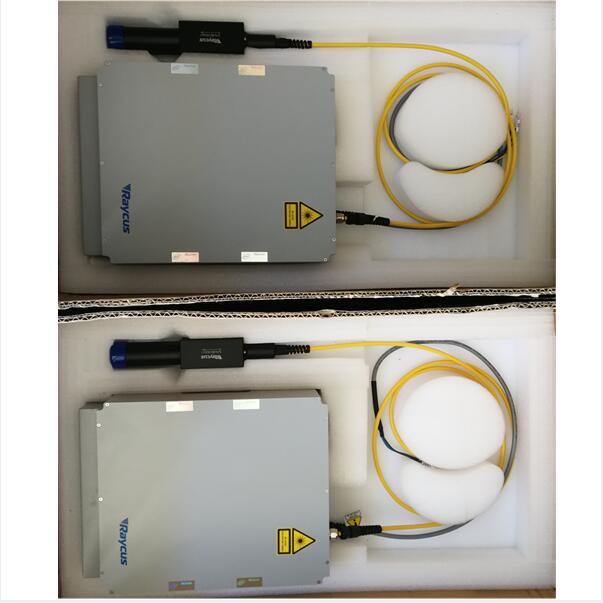

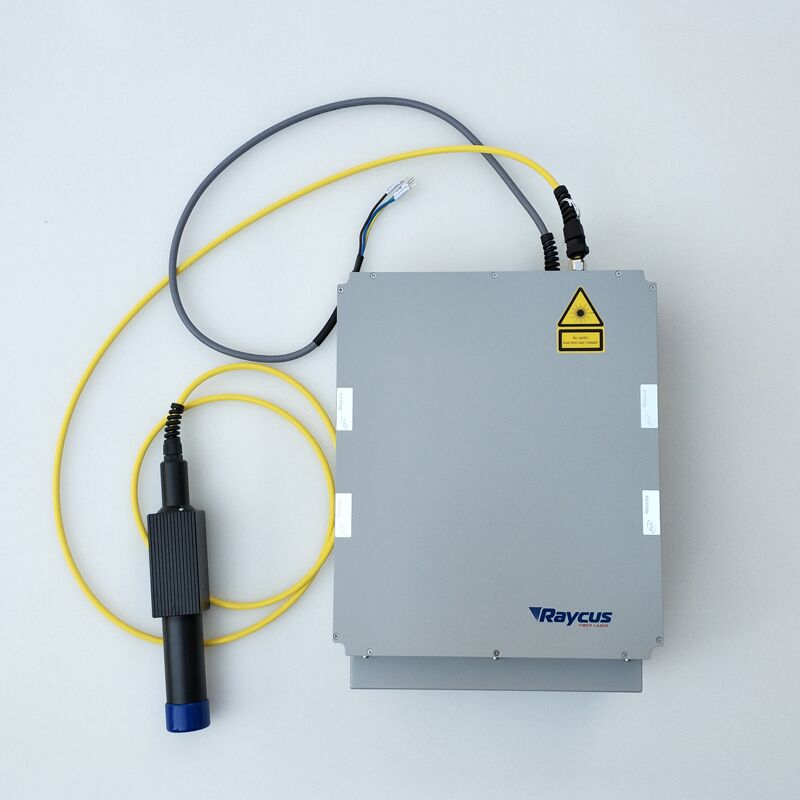

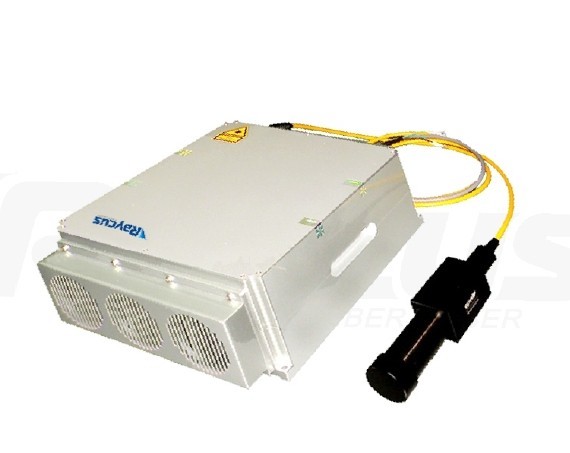

| 10-100w Q-switched pulsed fiber laser source | ||||||
| model | RFL P10QE | RFL P20QE | RFL-P30Q | RFL-P50Q | RFL-P50QB | RFL-P100Q |
| average output power w |
10 | 20 | 30 | 50 | 50 | 100 |
| central wavelength nm |
1064 | |||||
| repetition frequency range khz | 20-60 | 20-60 | 30-60 | 50-100 | 50-100 | 20-200 |
| output power stability |
≤3% | ≤5% | ||||
| output beam diameter mm |
7+/-1 | 6.5+/-1 | ||||
| m2 | ≤1.5 | ≤1.8 | ||||
| polarization state |
Random | |||||
| pulse width ns | 80-100 | 90-130 | 90-130 | 90-150 | 90-150 | 50-130 |
| max single pulse energy mj |
0.5 | 1 | ||||
| delivery cable length m |
2 customizable | |||||
| power supply vdc | 24 | |||||
| power range % | 10-100 | |||||
| power consumption w |
120 | 170 | 240 | 340 | 340 | 450 |
| dimensions mm | 391*260*120 | 396*360*123 | 391*261*120 | 396*360*123 | ||
| cooling | forced air | |||||
| operating temperature oc |
0-40 | |||||
| the 10-100w q-switched pulsed fiber laser series developed by raycus is the industrial marking and micromaching laser developed by raycus. the series of pulsed laserhas high peak power, high single-pulsed energy and optional spot diameter and can be widely applied in the fields ,such as marking, precision processing, graphic engraving of non-metal ,gold,silver,copper and aluminum with altitude stress resistance. stainless materials withou altitude stress resistance.its its marking process features lower cost and more stable performance compared with traditional laser. all components of the 10-100w Q-switched pulsed fiber laser are developed by raycus independently. with high product reliability. and its good compatibility has well recognized by the market and its quality has reached the international advanced level. |
||||||
| characteristic highly stable laser output short pulse setup time high single-pulse energy high reliablility high marking efficiency maintenance-free operation |
||||||

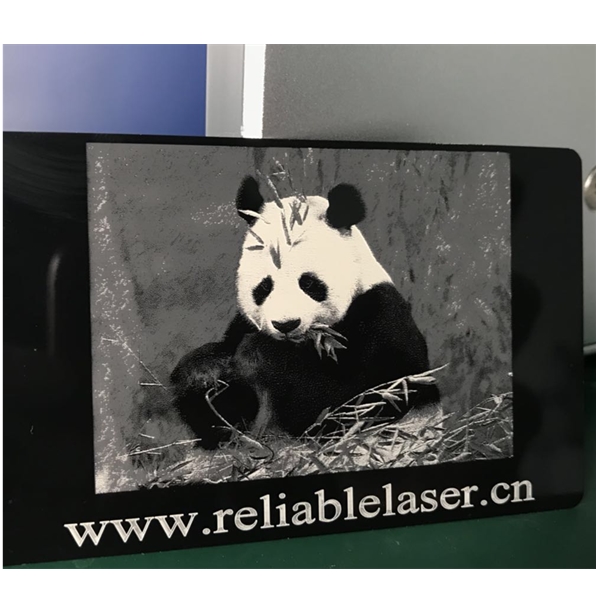

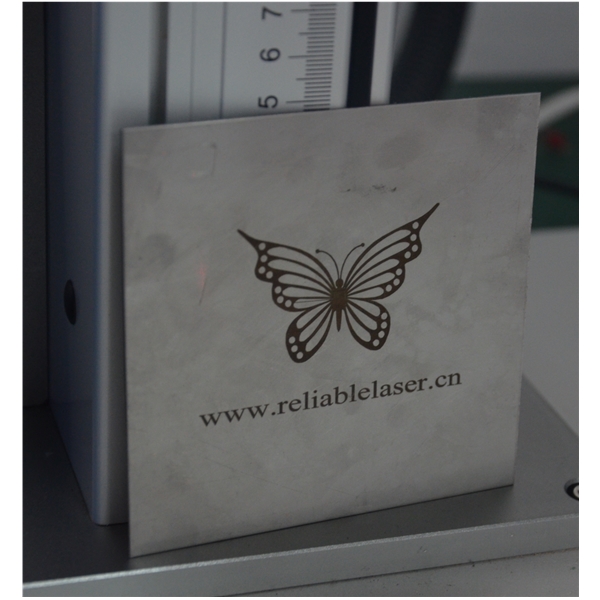

| application material processing cleaning metal film cutting&piercing silicon processing marking precision welding metal drawing resistance adjustment deep carving micro processing texturing ito film etching |
||||||
