| single module CW fiber lasers 500w 750w 1000w 1500w 2000w | ||||||

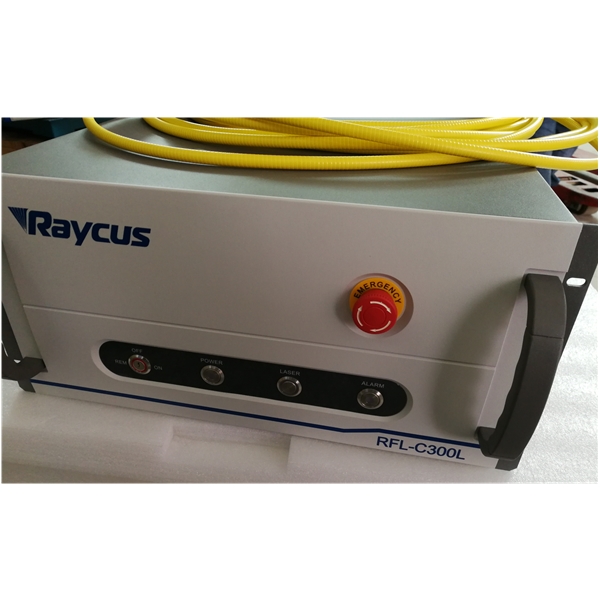

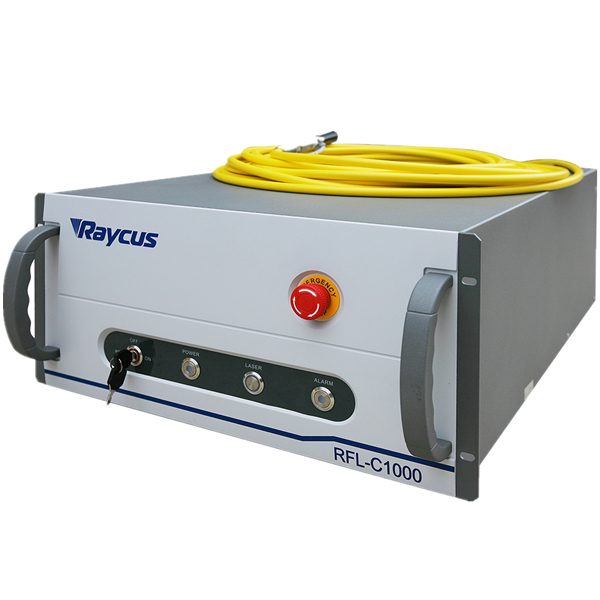

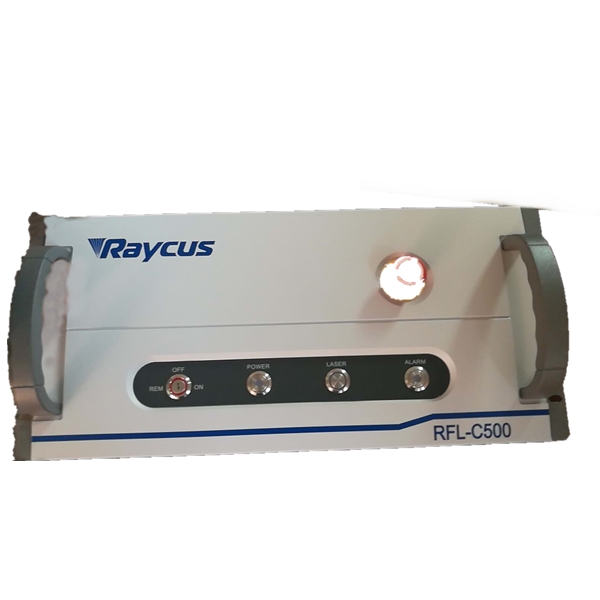

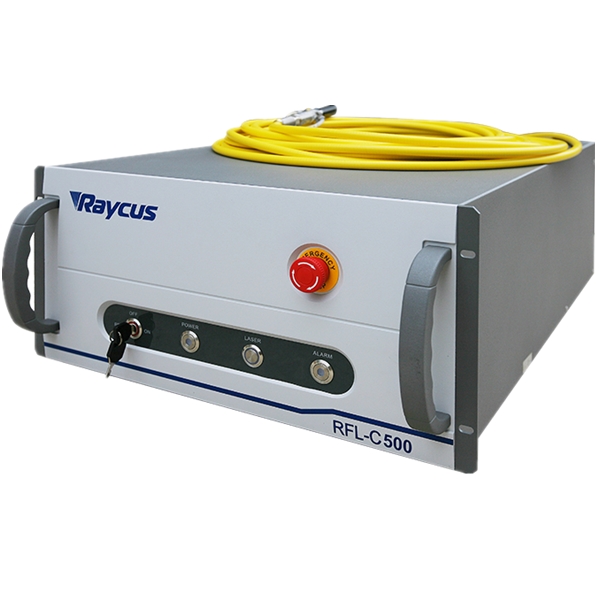

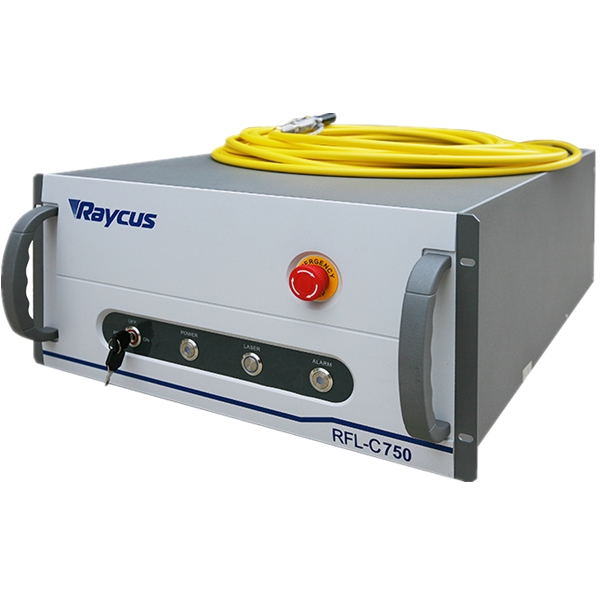

| model | RFL-C300L | RFL-C500 | RFL-C750 | RFL-C1000 | RFL-C1500 | RFL-C2000 |
| nominal output power W |
250 | 500 | 750 | 1000 | 1500 | 2000 |
| wavelength nm |
1080+/-5 | |||||
| operation mode |
CW /modulate | |||||
| max modulation frequency khz |
20 | 5 | ||||
| red light | yes | |||||
| beam delivery optics |
QBH customizable | |||||
| beam quality m2 | 1.1 | 1.3 | 2.1-2.7 | |||
| polarization state |
random | |||||
| delivery cable length m |
customizable | customizable | ||||
| power supply V AC@47-63Hz |
200-240 single-phase | 340-420 3phase 5 wires |
340-420 3phase 4 wires |
|||
| control mode | RS232/AD/super terminal | RS232/AD | ||||
| power range % | 10-100 | |||||
| power consumption w |
1000 | 2000 | 3000 | 4000 | 6000 | 8000 |
| dimensions mm | 485*240*680 Handle included |
485*240*765 Handle included |
520*620*986 Handle included |
|||
| weight kg | ≤50 | ≤90 | ||||
| cooling | water cooling | |||||
| operating temperature oc |
10-40 | |||||

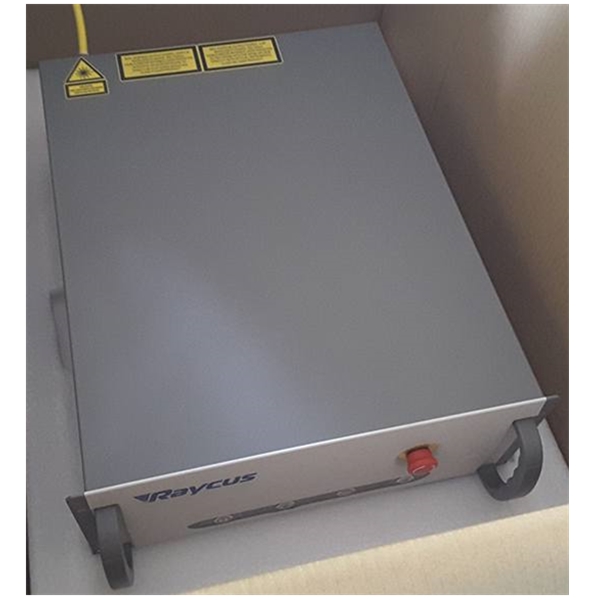

| the third generation single module cw fiber laser developed by raycus ranges from 300w-2000w the new laser has higher electro-optical conversion efficiency. higher and more stable optical quality,stronger altitude stress-resisting capacity and it applies optimized second-generation fiber transmission system to ensure more stable and more sophisticated cutting effect in thick sheet cutting. this machine applies to many application scenarios: cutting ,welding,holing,medical device process, etc.with a narrow seam of the cut sheet and bright section. compared with same lasers ,it has obvious advantages. |
||||||
| characteristic high electro optical conversion efficiency customized output fiber length wide modulation frequency range altitude stress resisting capacity optional air cooling or water cooling sheet cutting efficiency maintenance free operation |
||||||
| application precision cutting, metal carving ,metal welding,surface treatment,sheet metal piercing, 3d printing /rapid protoyping |
||||||
