1. 4-way motor interface, output maximum 400KHZ frequency;

drive capacity 20mA, common anode interface;
2. Onboard 128M non-releasable memory;
3. USB maximum transmission rate is 12M, the longest

distance is 5 meters;
4. The maximum transmission rate of the network cable is 100M,

and the maximum transmission distance is 200M.
5. Linear/Arc/B-spline interpolation accuracy +/- 0.5 pulses;
6. 4 channels of general-purpose opto-isolated OC gate output,

maximum 300mA drive capability (with freewheeling protection),

can directly drive 24V/5V DC relay;
7. 4 general-purpose opto-isolated inputs, compatible with

5V/12V/24V logic levels;

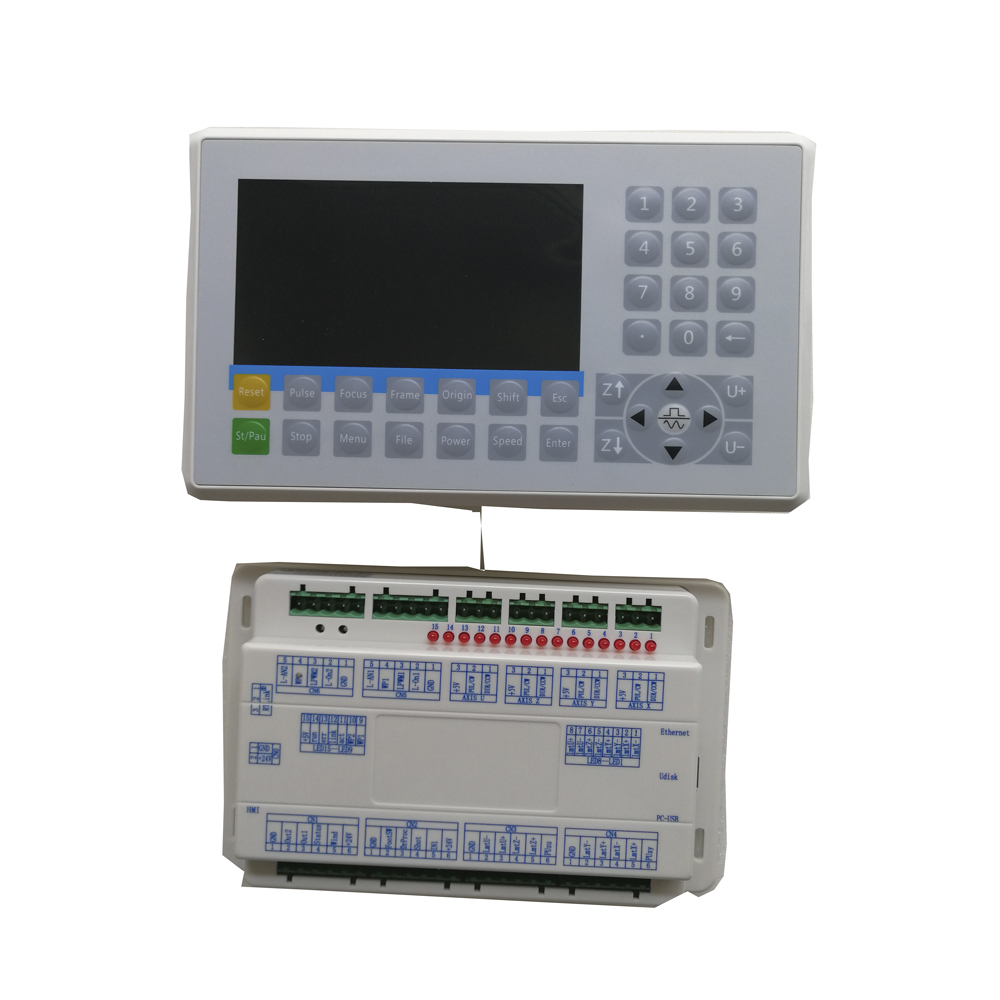

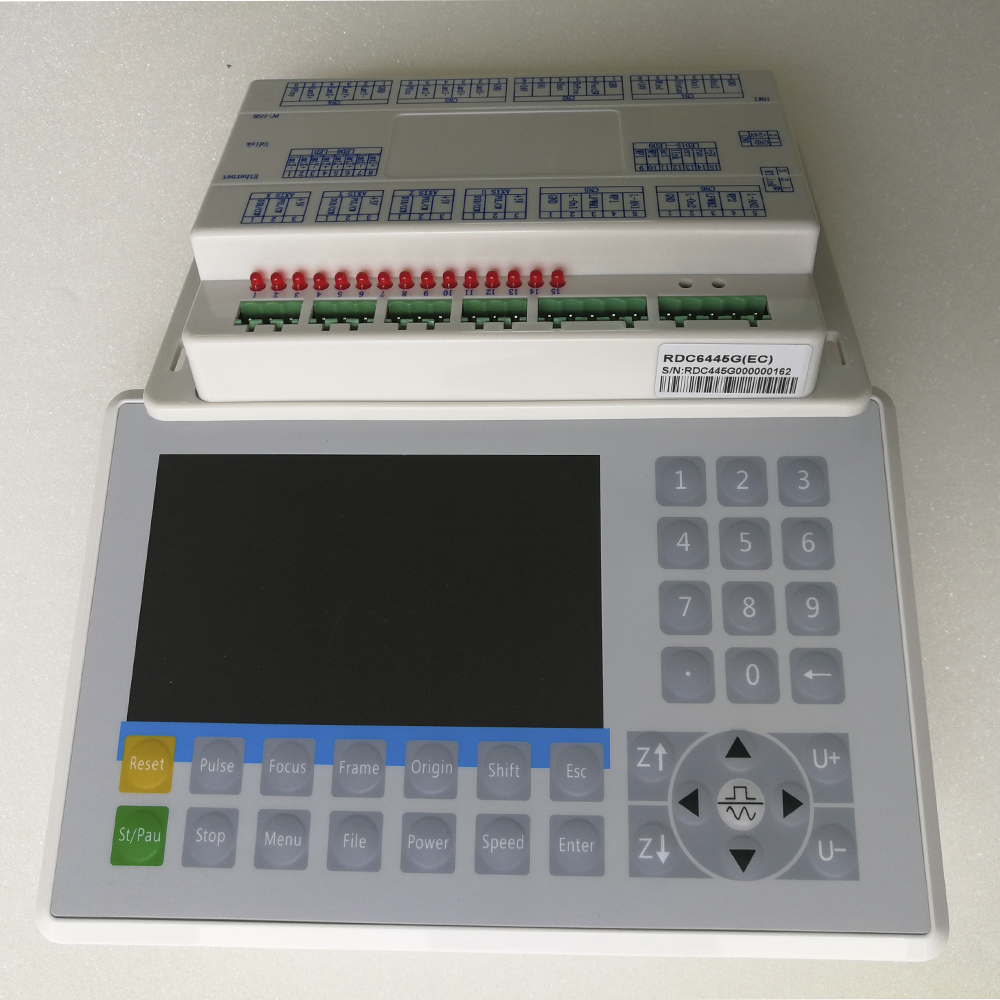

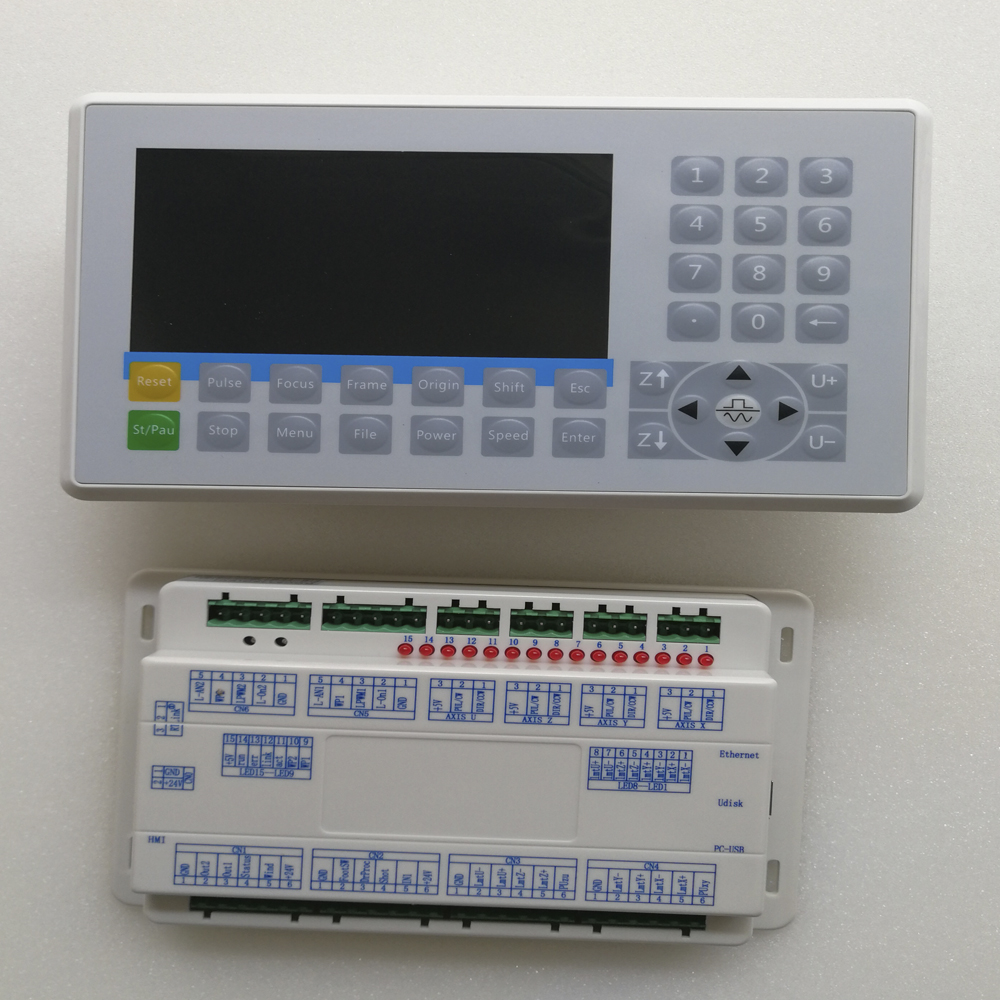

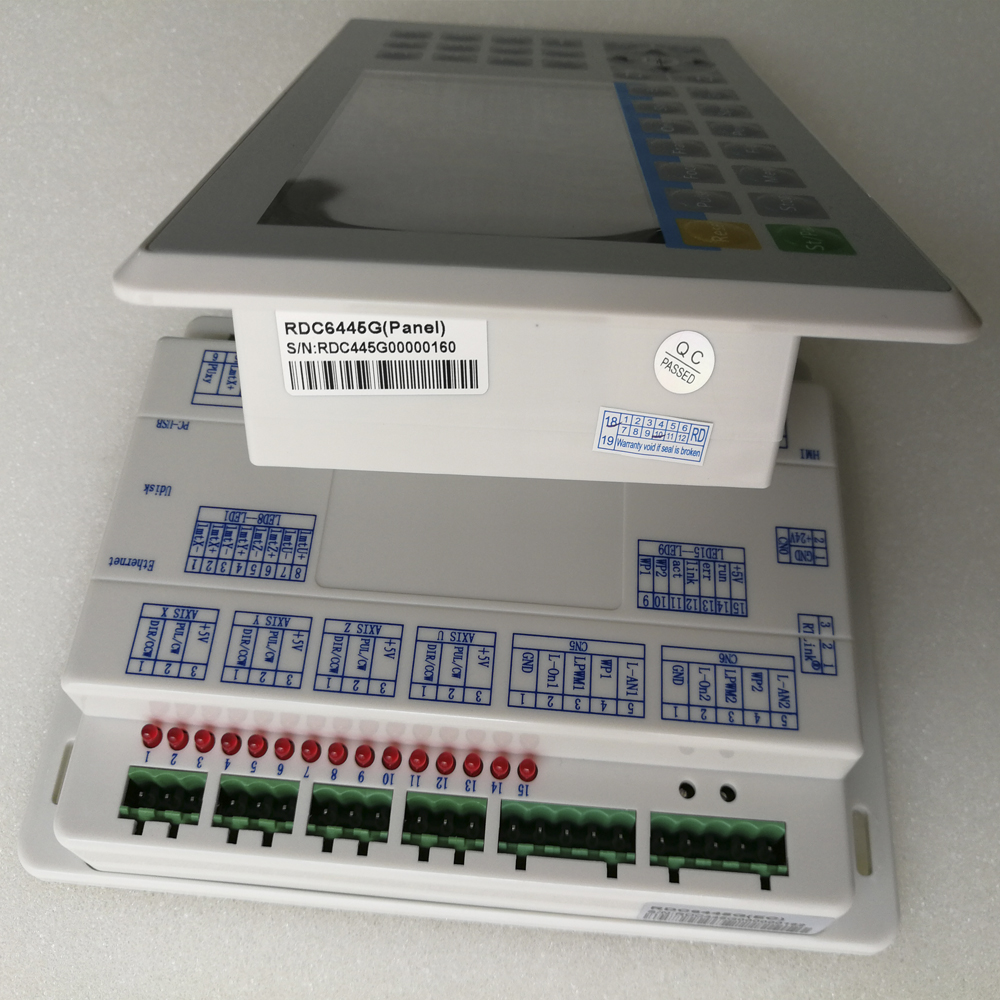

The control system has better hardware stability and better

resistance to high voltage and antistatic interference. The 5-inch

color screen-based human-machine operating system has a more

user-friendly interface and more powerful features. The controller

includes more complete and better motion control functions,

large-capacity file storage, more compatible dual independent

adjustable laser power control interface, more compatible U disk

driver, multi-channel universal / dedicated IO Control, communication

with PC supports Ethernet communication and USB communication

automatically. The controller can support fixed single/double laser

head processing, double head mutual processing, and ultra-wide

split cutting. Its extended models also support MARK point vision

positioning and cutting, large-format panoramic vision cutting,

as well as projection cutting, double-head asynchronous and a

series of functions.

Function description:

1. Support up to 4 servo/stepper motor controls;
2. Support 1 channel extended serial port, can communicate with

EPLC-400, wireless handheld device (BWK201R, BWK301R),

and other devices with RS232 standard interface;
3. Support 4 channels of OC gate output, can directly drive 5V/24 relays;
4. Support mobile APP;
5. Support double-head electric mutual shift control and

super-format split cutting processing;
6. Support double-head asynchronous processing;
7. Support large-format vision, mark point vision cutting and projection cutting;
